1947- 1955 Chevy/GMC Pickup Kick Panels | Morel Virtus Nano Carbon
1947- 1955 Chevy/GMC Pickup Kick Panels | Morel Virtus Nano Carbon
Couldn't load pickup availability
Description

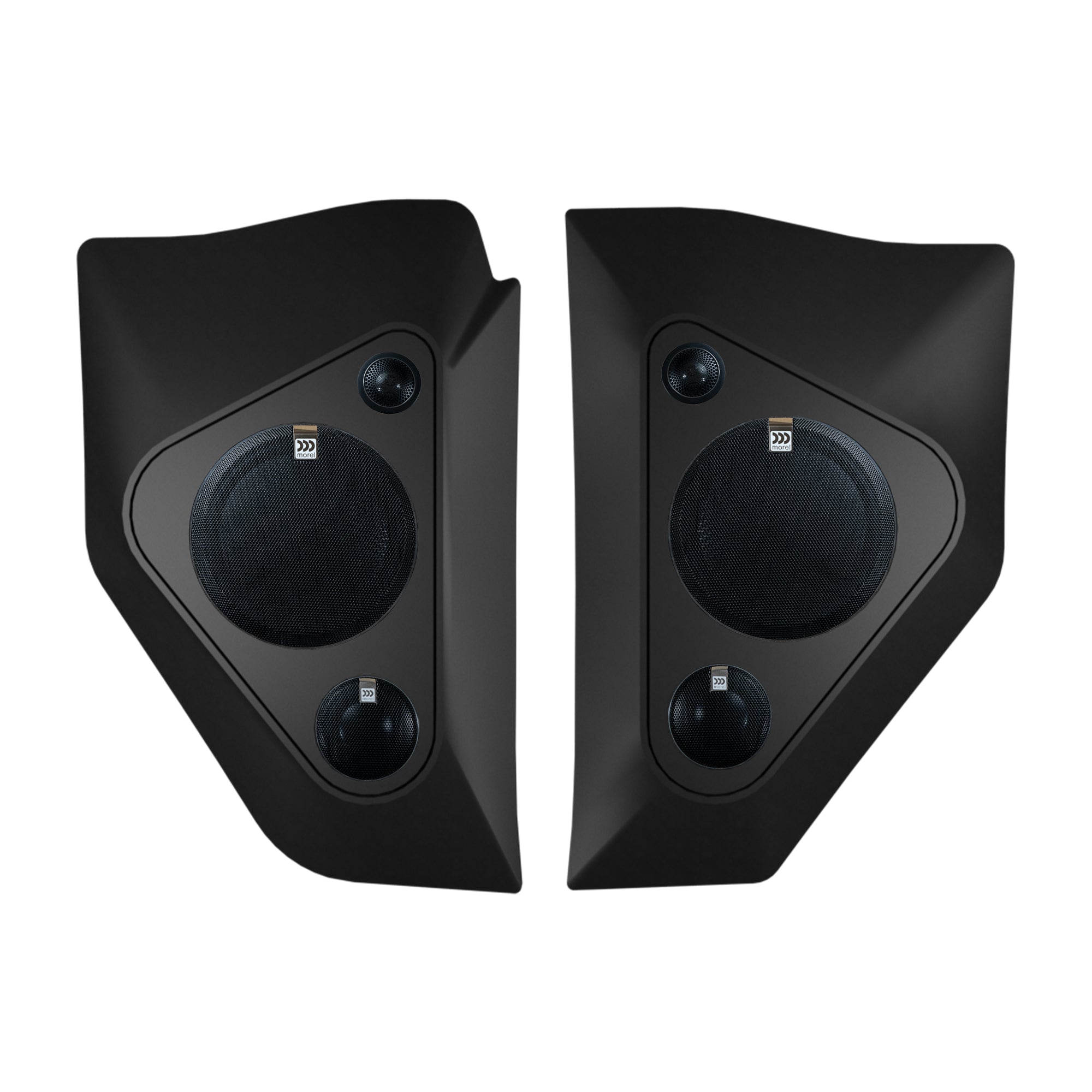

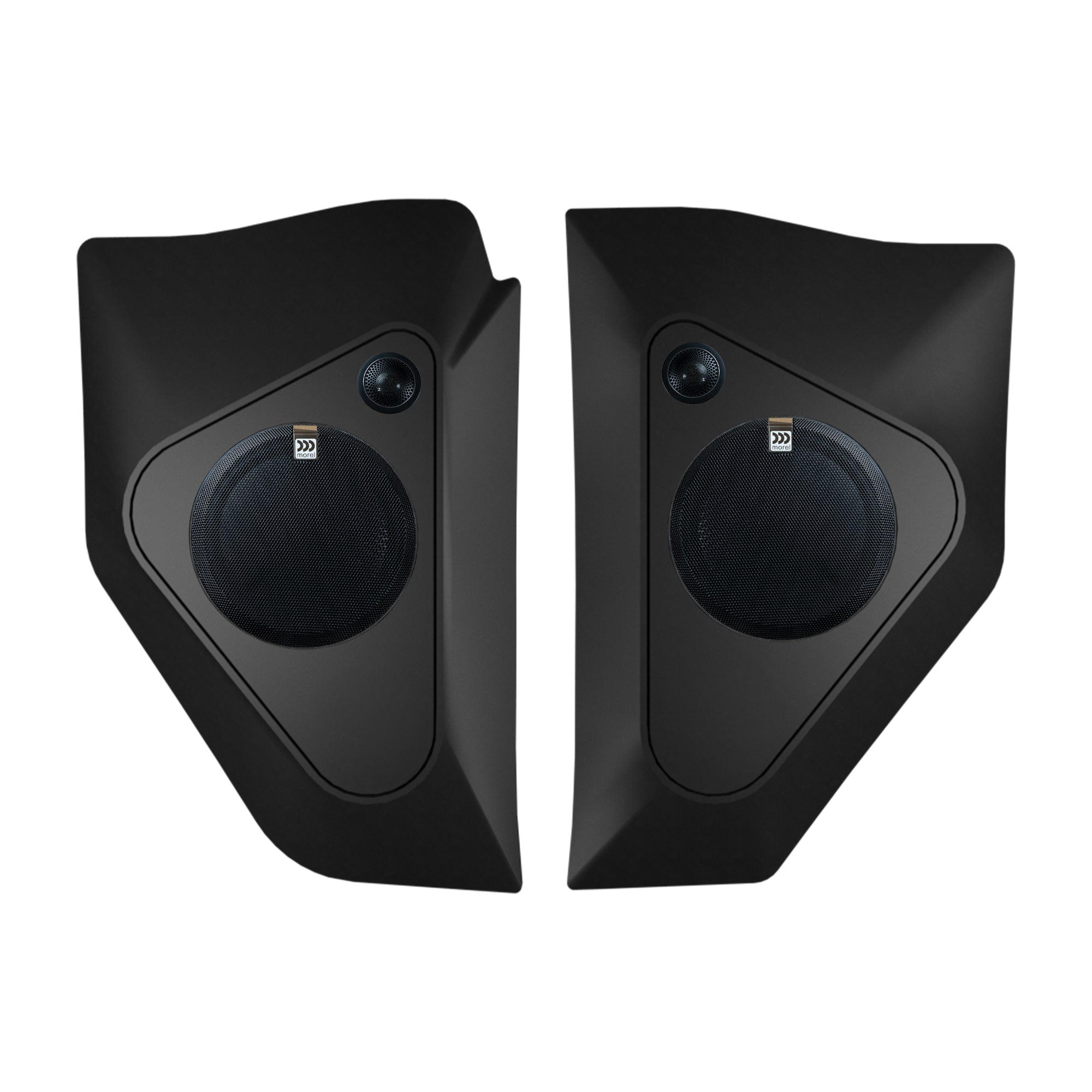

Upgrade your 47-55 Chevy/GMC truck's audio with style and efficiency! Our sleek, ultra-thin kick panels, equipped with Morel's Virtus Nano Carbon shallow-mount speakers, offer powerful sound in a compact design. At just 2.2" thick, you get top-notch sound quality while conserving valuable space.
Please note, these kick panels delete the fresh air vents on both sides. Made from dense, moisture-resistant MDF and wrapped in premium vinyl upholstery, they come in several colors and provide outstanding durability.
MADE IN USA
Vehicle Compatibility
1947-1955 Chevy/GMC Pickup
Features
- EASY INSTALLATION, no modification required

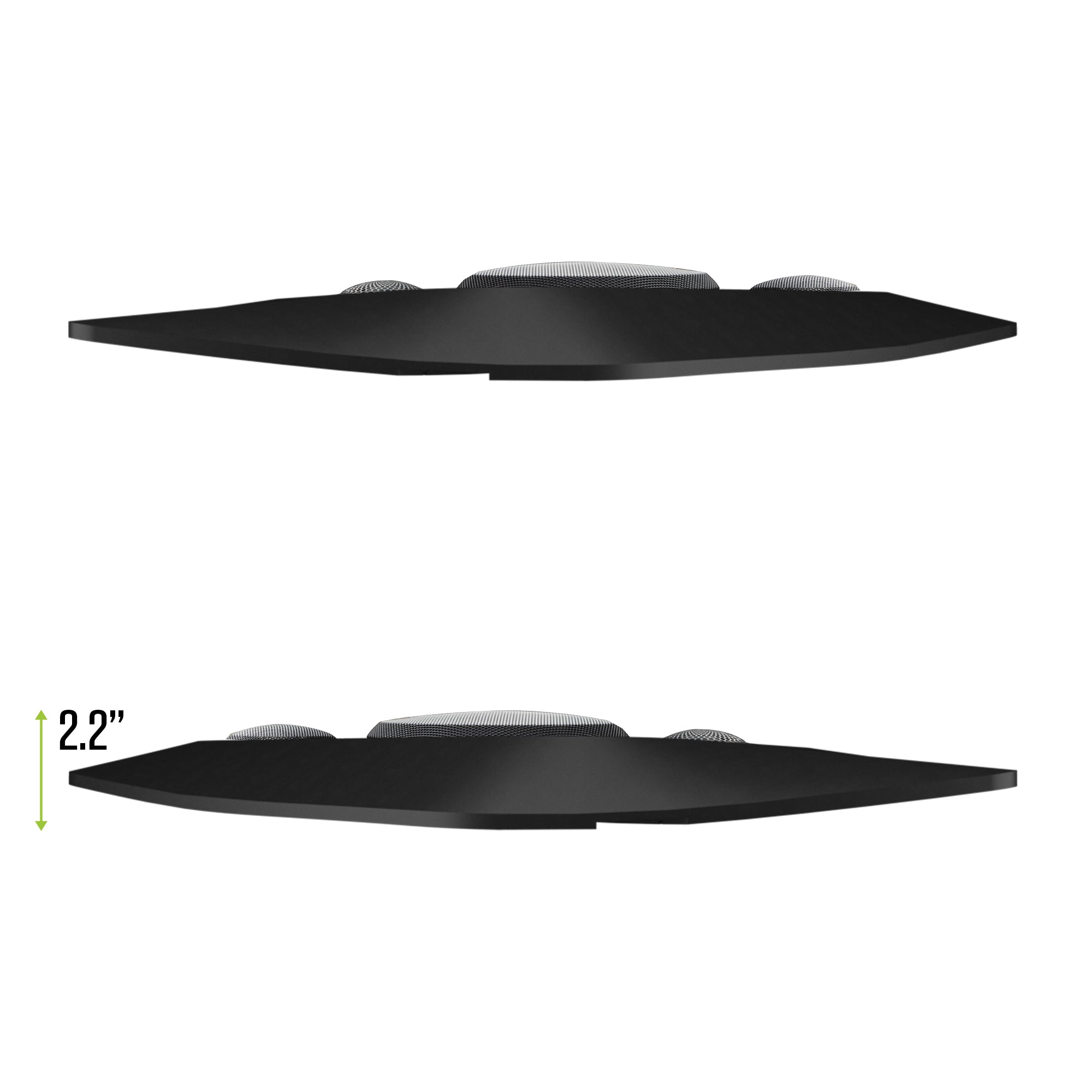

- Impossibly thin at 2.2" with speakers & grilles
- Wrapped in premium, durable vinyl
- Constructed of moisture-resistant MDF
- Contoured on both sides for a factory-tight fit
Welcome to TPD HiFi. We are American engineers, audiophiles and car builders that have combined our skills to design and build the best audio components for your car or truck.Specializing in both vintage and modern classics, we provide solutions ranging from a basic kick panel package to complete plug and play systems. Every TPD component has been carefully designed to fit correctly, sound great and save installation time. We accomplish this by laser measuring each vehicle, selecting the best audio gear for the application, and making sure the kit comes with everything you need for a successful installation. Finally, a custom audio solution, without the time and cost of the “custom shop”.
47-55 CHEVY PICK UP
After WW2 it was time for America to get back to work and General Motors stepped up and launched an all-new pickup to get that work done. First available in June of 1947 the new truck was dubbed Advanced-Design with the GMC counterpart being named the GMC New Design. The new truck was larger, stronger with more style. It was also the first generation of GM truck to offer an “in-dash” radio! They must have done something right because it went on to be the number 1 selling truck from 1947 – 1955.
IMPOSSIBLY THIN
TPD HiFi’s custom loaded kick panels are made specifically for Morel’s shallow mount speaker line, pushing the limits of sound quality in a thin, low profile package allowing them to be installed in C10 pickups even when the original foot-activated parking brake is retained. A match made in heaven with no sacrifices!
TOP NOTCH AUDIO WITH FLEXIBILITY FOR ANY GOAL

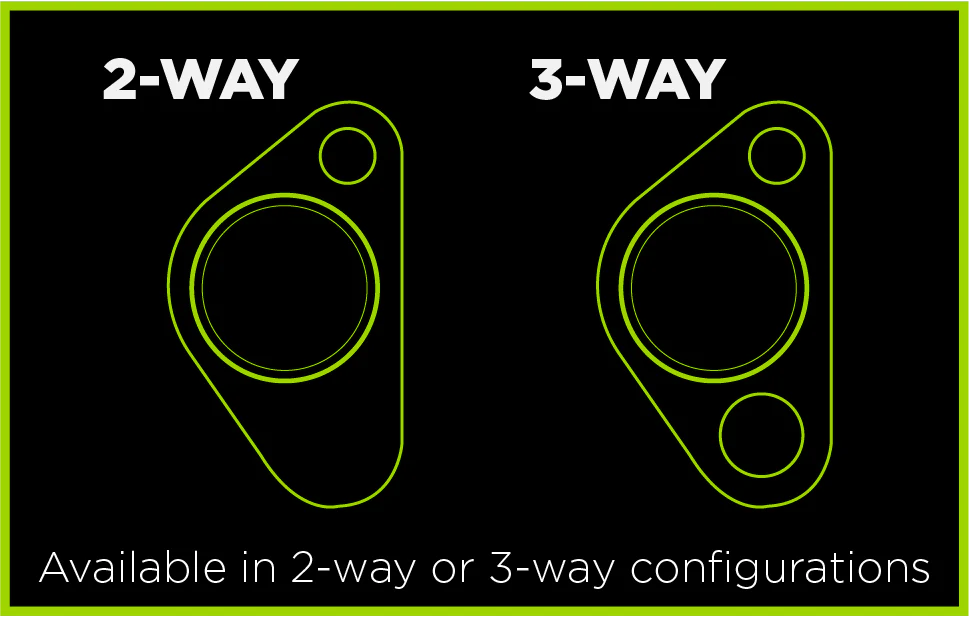

Elevate your audio experience with our kick panels paired seamlessly with Morel™ Virtus Carbon Nano speakers. Choose from the 2-way speaker system consisting of a 1.1” tweeter and a 6.5” carbon fiber woofer or up your mid-range game with the 3-way system that adds Morel’s MM2, 3-inch mid-range driver. The additional mid-range speaker elevates the instruments and vocals in the middle of the frequency spectrum, improving the live music experience. Immerse yourself in premium sound quality, where precision engineering meets top-tier components for a rich, immersive, and dynamic listening experience. Designed to complement each other, these kick panels and Morel speakers deliver a harmonious blend of style and superior audio performance.
INTENTIONAL DESIGN

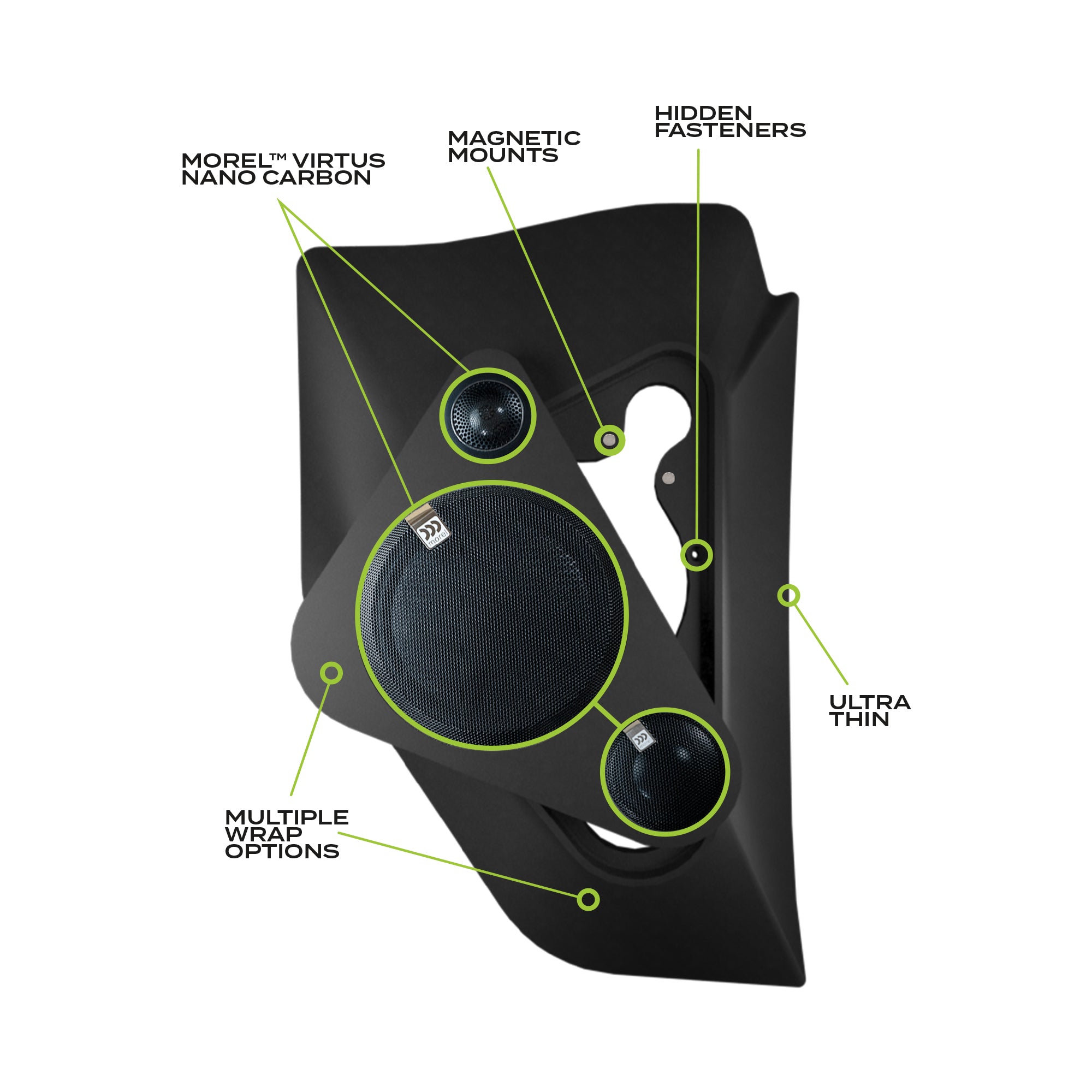

Engineered to seamlessly integrate with your vehicle. Combining years of custom building audio interiors with modern engineering techniques allowed us to come up with a kick panel design that fits like a modern OEM component should. TPD HiFI kick panels come complete with everything you need to mount them down to the correct hardware. No more worrying about modifying to fit or chasing down parts to finish the installation.
PREMIUM MATERIAL
TPD HiFi Kick Panels are made with the best possible materials available. Precision machined from a moisture resistant composite material before being sealed and sent to our upholstery department. We strive to offer the best possible automotive vinyl and leather options and every kick panel set includes stainless steel hardware. Even our shipping materials are made in house to make sure your new kick panels arrive in perfect condition.
EASY INSTALL
Engineered to seamlessly integrate with your vehicle, our kick panel utilizes the existing Door Strap Hardware, eliminating the need for complex installation procedures. With just one 10-32 Well Nut, mounting becomes a breeze, ensuring a hassle-free experience for you.
PREMIUM
Equipped with Morel's Acudamp Sound Deadener, meticulously designed to diminish noise transfer into your vehicle. With this advanced technology seamlessly integrated into your car's interior, enjoy unparalleled clarity in your audio journey.
SPECIFICATIONS
The Virtus Nano Carbon delivers gold standard performance in 2-way or 3-way point source systems.
MOREL VIRTUS NANO CARBON INTEGRA COAX
The Nano Carbon Integra is a true 2-way speaker system that incorporates the tweeter into the center of the woofer basket for a clean look.
Size & Configuration - 6½" Point Source
Power Handling(WRMS)/ Peak Power (W) - 100/300
Sensitivity (2.93V/1M) - 87dB
Frequency Response - 50-22000
Crossover - MXR250.4i
MOREL VIRTUS NANO CARBON 62 2-WAY
Morel’s Virtus Nano Carbon 2-way sets the standard for shallow 2-way component systems. The shallow design allows mounting virtually anywhere without sacrificing sound quality.
Size & Configuration - 6½" 2-way
Power Handling(WRMS)/ Peak Power (W) - 100/300
Sensitivity (2.93V/1M) - 88dB
Frequency Response - 50-22000
Crossover - MXR200.4
MOREL VIRTUS NANO CARBON 63 6' 3-WAY
The Virtus 3-Way speaker system add the 3 inch midrange for the most immersive audio experience possible.
Size & Configuration - 6½" 3-way
Power Handling(WRMS)/ Peak Power (W) - 100/300
Sensitivity (2.83V/1M) - 87dB
Frequency Response - 50-25000
Crossover - MXR130
