Morel Elate Carbon Pro 93A | 9" 3-way component speaker system
Elate Carbon Pro Series 9" 3-way component speaker system

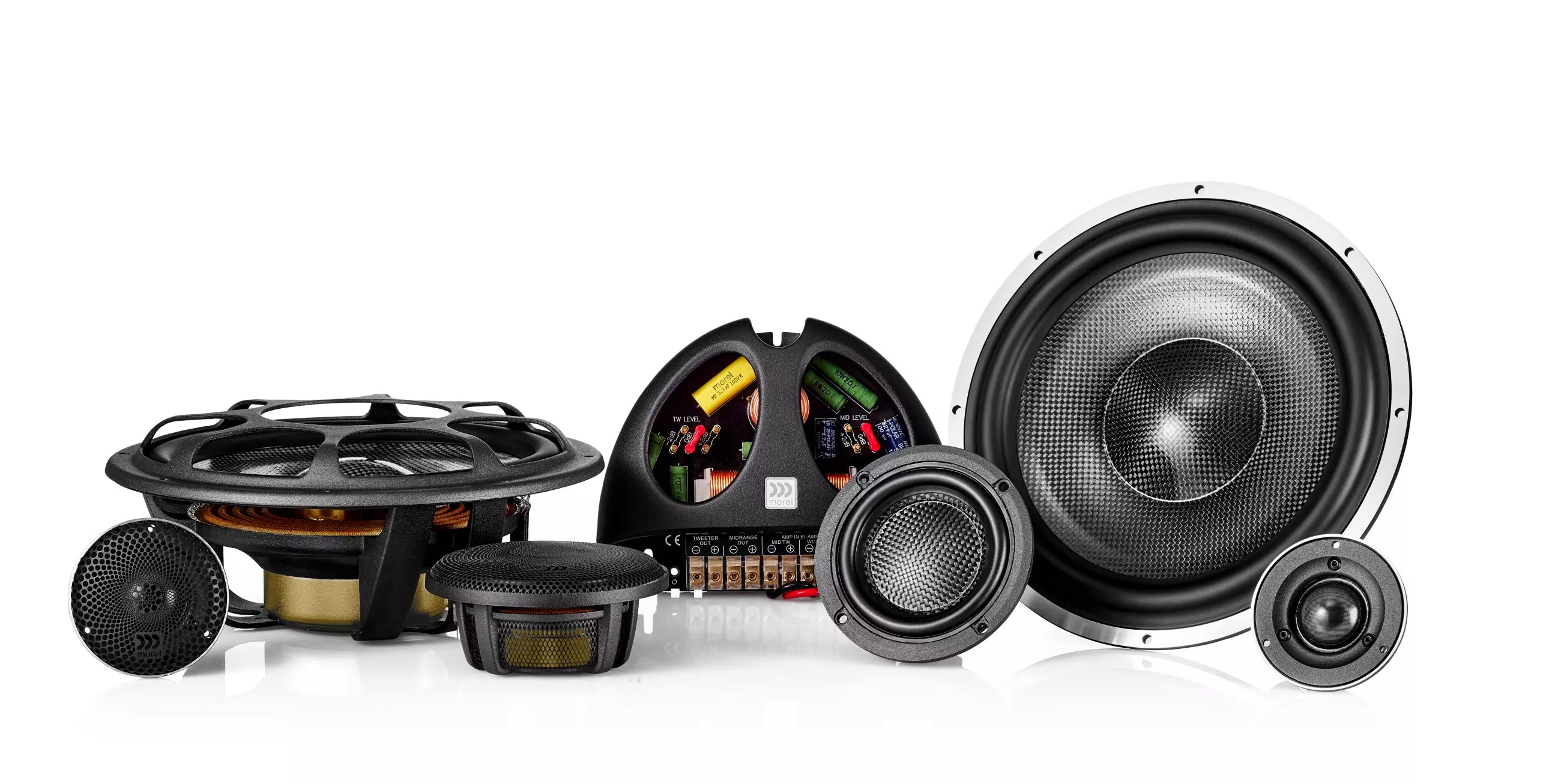

The sheer elegance of Morel's iconic Lotus-design speaker grilles is enough to captivate anyone, but it’s the sound that truly defines the experience. The Elate Carbon Pro 93A 3-way component system features a powerful 9" woofer, a 3" midrange driver, and the Elate Alto 1.1" tweeter—components not available in the standard Elate Carbon models. Both the midrange and woofer are crafted with a carbon-fiber/Rohacell cone, designed to minimize distortion and deliver the most precise sound imaginable. As for the Elate Alto tweeter, Morel utilizes cavity-back technology—originally created for their flagship Supremo Piccolo tweeter—to produce extraordinarily clear, crisp high frequencies.
Product highlights:
- 3-way component speaker system
- includes two woofers, two midrange drivers, and two tweeters
- 9" 2-layer carbon fiber/Rohacell woofer cone with butyl rubber surround
- 3" 3-layer carbon fiber/Rohacell midrange driver and 1-1/8" Elate Carbon Alto Acuflex-coated silk dome tweeter
- cast aluminum basket
- handles up to 200 watts RMS (1000 watts peak power)
- frequency response: 25-25,000 Hz
- sensitivity: 89 dB at 2.83 V
- woofer mounting depth: 2-7/8"
- woofer cutout diameter: 7-7/8"
- midrange mounting depth: 1-9/16"
- midrange cutout diameter: 3-1/4"
- grilles included
- warranty: 2 years
What's in the box:
- 2 MW9 Woofers
- 2 MM3 Midrange
- 2 Alto Tweeters (with attached 7" length of speaker wire)
- 2 Woofer grilles
- 2 Midrange grilles
- 2 Midrange grille frames
- 2 Tweeter grilles (installed)
- Eight 1-1/4" Screws
- Sixteen 3/4" Screws
- 8 Large speed clips
- 16 Small speed clips
- Grille putty
- Eight 0.25" Crimp-on female quick slides
- Four 0.110" Crimp-on female quick slides
- Installation guide
- Warranty card
- Genuine product verification instructions
